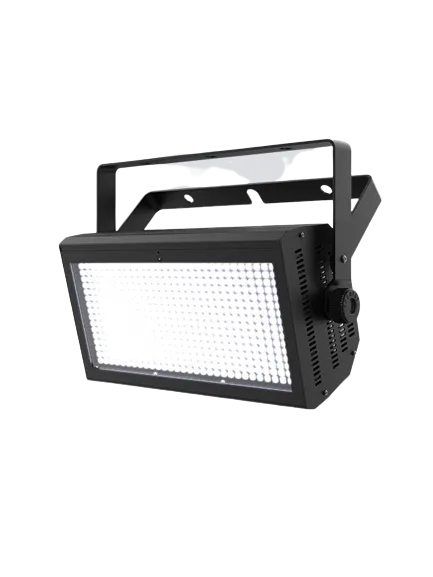

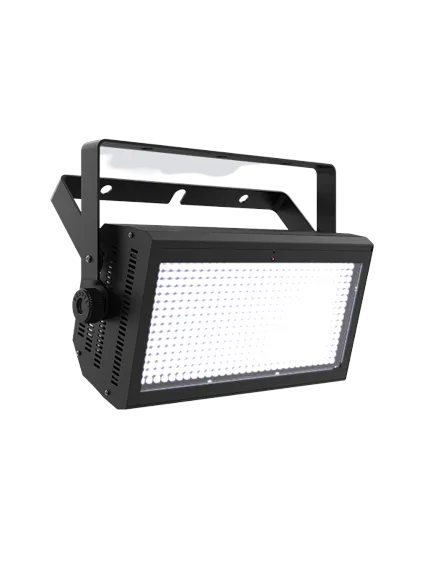

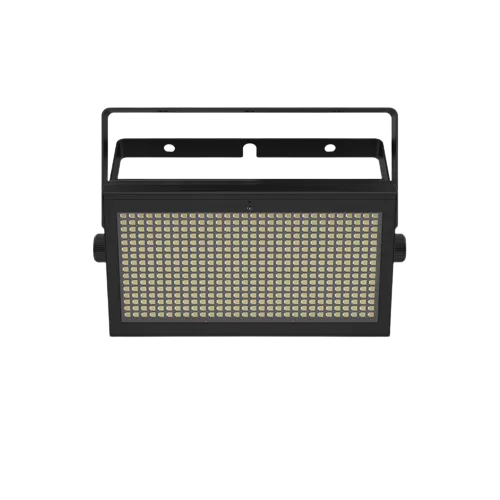

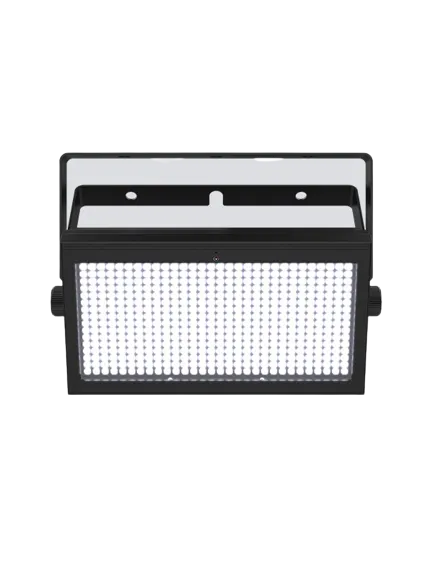

Shock celebrations to dynamic life with Shocker Panel 480, a punchy, single-zone blinder with cool white SMD LEDs. As a blinder or strobe, eye-catching effects can be triggered easily with the built-in display, DMX, or with the optional IRC6 remote. Shocker Panel 480 is ready for the road too with its rugged housing that makes it ideal for mobile applications and powerCON®-compatible power input/output connections for secure power linking.
Highlights
-
Punchy, single-zone blinder with cool white SMD LEDs
-
Rugged housing makes it ideal for mobile applications
-
Trigger eye-catching strobe effects via the built-in display, DMX, or with the optional IRC6 remote
-

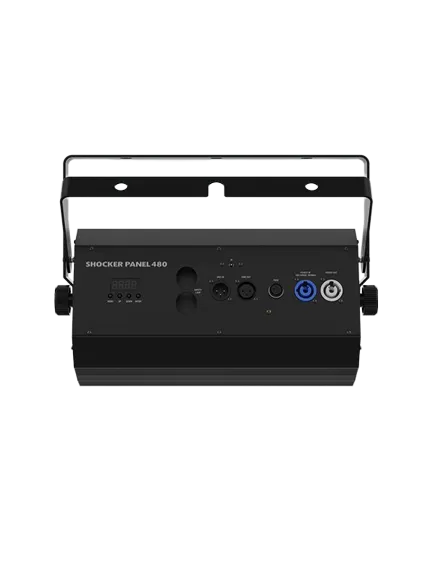

powerCON®-compatible power input/output connections for power linking
-
Save time running cables and extension cords by power linking multiple units
-
Easily transports in the optional CHS-25 VIP gear bag
Specifications
- DMX Channels: 4
- DMX Connectors: 3-pin XLR
- Light Source: 480 SMD LEDs (cool white) 0.7 W (236 mA), 50,000 hours life expectancy
- Strobe Rate: 0 to 28 Hz
- Beam Angle: 111°
- Field Angle: 155°
- Illuminance: 1,348 lux @ 2 m
- Lumens: 14,974
- Power Linking: 5 units @ 120 V; 9 units @ 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Weight: 9.4 lb (4.3 kg)
- Size: 13.1 x 4.5 x 6.7 in (332 x 115 x 170 mm)
- Power and Current: : 208 W, 2.7 A @ 120 V, 60 Hz
- Power and Current: : 200 W, 1.5 A @ 230 V, 50 Hz
- Bracket Mounting Hole: : 13 mm
- Optional Controllers: : IRC6
- Approvals: : CE, UKCA
